Sauna Heaters and Controls

Our sauna heaters are the “heart and soul” of our saunas. All of our models are of rust resistant materials (stainless steel body and stainless steel heating elements are standard), are UL listed, and feature a large rock capacity with rocks in direct contact with the heating elements. This direct contact insures soft heat and pleasant steam.


Digital Sauna Heater Series with separate controls

  • 23″H x 16″W x 11″D, wall-mounted
  • 50 lbs of Olivine sauna stones
  • DC60 digital control with adjustable time and temp
  • 4.5kW, 6.0kW or 8.0kW
  • For sauna rooms 100 cu. ft. to 425 cu. ft.


Misty Sauna Heater Series

  • 23″H x 16″W x 14.5″D, wall-mounted
  • Includes 50 lbs of Olivine sauna stones
  • Separate “Misty” control and contactor box
  • Designed to provide lower temperature and higher humidity environment
  • Steam generator can be connected to water supply or can be manually filled
  • 6.0kW or 8.0kW, with built-in steam generator
  • For sauna rooms 175 cu. ft. to 425 cu. ft.


Designer S Sauna Heater Series with separate controls

  • 23″H x 16″W x 11″D, European design, wall-mounted
  • Includes 50 lbs of Olivine sauna stones
  • Separate wall-mounted controls (C Series)
  • 4.5kW, 6.0kW or 8.0kW
  • For sauna rooms 100 cu. ft. to 425 cu. ft.


Designer B Sauna Heater Series with built-in controls

  • Includes 50 lbs of Olivine sauna stones
  • Built-in, side- or front-mounted controls with thermostat and 9+1 timer (60 minutes on, with 9 hour delay)
  • 4.5kW, 6.0kW or 8.0kW
  • For sauna rooms 100 cu. ft. to 425 cu. ft.

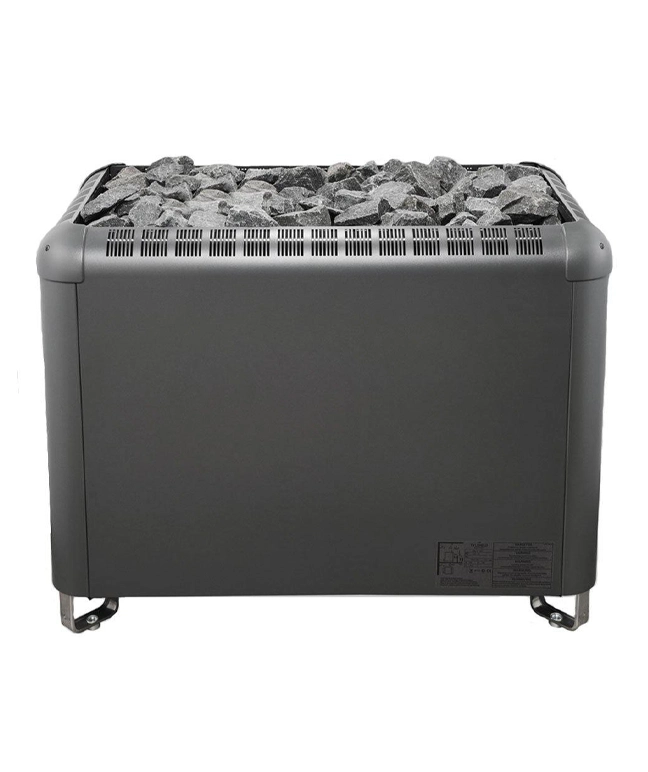

Professional Sauna Heater Series – Floor Standing

  • 28″H x 20″W x 20″D, designed for commercial use
  • Includes 132 lbs of Olivine sauna stones
  • Separate wall-mounted controls (C Series)
  • Use with contactor box R1 or R3
  • 10.5kW, 12.0kW or 14.4kW
  • For sauna rooms 390 cu. ft. to 950 cu. ft.


  • Use with SaunaLogic digital control and contactor

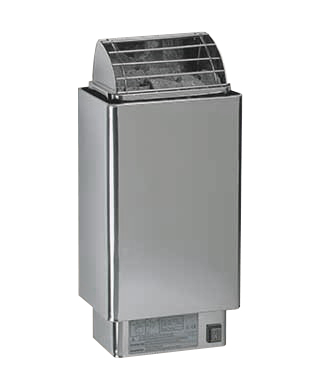

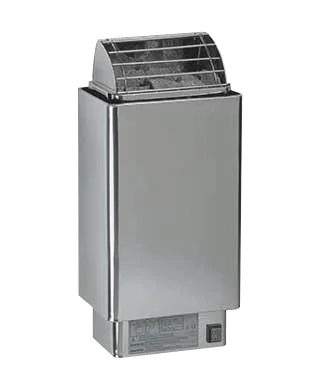

  • Wall mounted
  • 25 lbs. of vulcanite rocks
  • 26”H x 111/2” W x 8”D
  • 2.1kW and 3kW
  • Stainless steel construction
  • For sauna rooms up to 150 cu. ft.

Black Vena-B

    • Built-in controls (bottom side)
    • 26” H x 17” W x12”” D
    • Includes 50 lbs of Vulcanite stones
    • Black outer shroud, stainless steel elements, black anodized aluminum top.
    • Built-in controls include thermostat and 1-hour timer
    • 4.5kW , 6.0kW or 8.0kW
    • For saunas from 100 cu ft. to 420 cu ft.

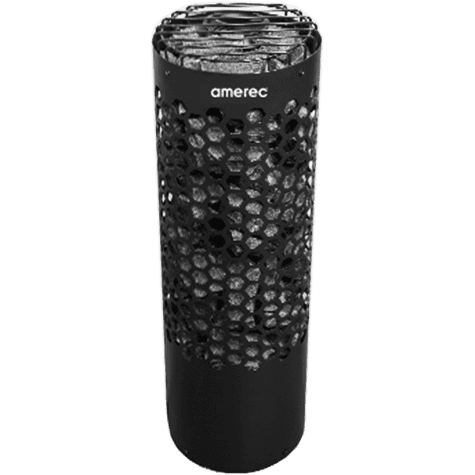

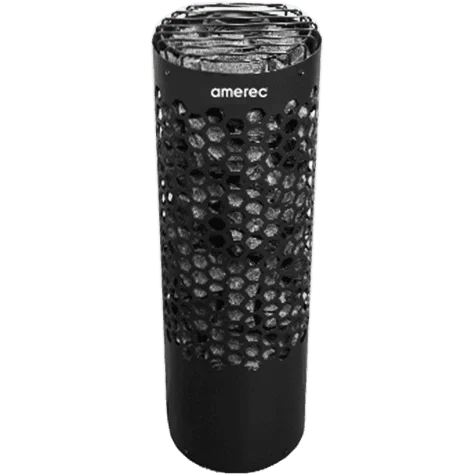

    • Dimensions: 12″ x 15″ x 40-1/2″
    • Floor standing rock tower heater with 210 lbs of rocks
    • BWT (Bio Water Technique) Ready
    • Match with Trend Control
    • Himalaya 7 (6.8 kW) for 175-350 cubic feet
    • Himalaya 9 (9.0 kW) for 310-500 cubic feet

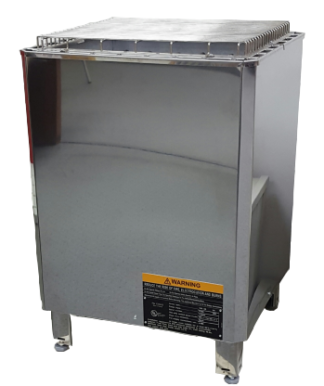

    • Dimensions: 22″ x 22″ x 35″
    • Floor standing
    • Designed for large residential & commercial-size sauna rooms
    • Use with separate FSC or Digi series controls
    • BWT auto-fill option available
    • For rooms ranging from 390 to 950 cubic feet
    • Available in 10.5 kW, 12.0 kW, and 14.4 kW
    • 240 volt / 1 phase or 208 volt / 3 phase

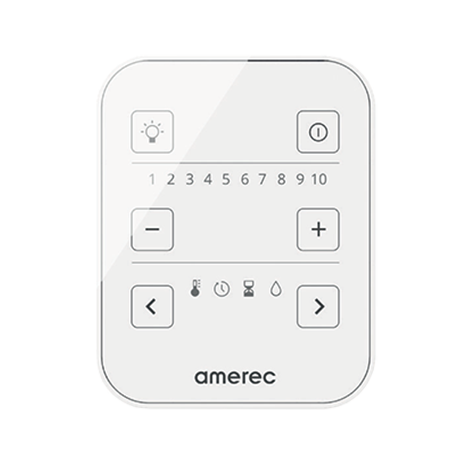

Digital Sauna Heater Control A6

The A6 touch control panel displays the temperature and running time, can be programmed to start up to 24 hours in advance, and can run from 15 minutes up to 24 hours. It allows you to regulate all existing features in your steam room such as lighting, temperature settings and different languages, with even more advanced functions. It is designed to be wall mounted outside the room for ease of use. You have the choice of surface or flush mounting through the use of a recess that is available for the kit. Flush mount kit includes trim ring to match the steam head finish selected by the end-user. The display indicates your settings on a numbered scale and you can connect it to an external switch or even link it to most smart home solutions.

  • Intelligent start
  • Pre-heats steam bath for you
  • Calendar programming
  • Tell your steam bath to work according to your schedule
  • Energy saving
  • The stand by mode makes for efficient use of power
  • Dimensions: 3.5″ W x 5.09″ H x 0.53″ D


Digital Sauna Heater Control T1

With a large touch screen display and sleek European design, the T1 Touch control is a beautiful addition to any steam bath.

  • Touch screen operation for easy control of temperature and time settings.
  • Large screen displays steam bath temperature and time of day.
  • Displays temperature in Fahrenheit or Celsius.
  • Sleep mode with integral sensor to activate screen when approached.
  • Delayed start feature to pre-heat steam room at selected time.
  • Multiple language settings including English and Spanish.
  • Remote mounted sensor allows control to be located inside or outside room.
  • Flush-mount, low-profile installation.
  • Installed dimensions 6 3/8″ H x 4″ W.
  • Pairs with AT Generator


Digital Sauna Heater Control DC60

  • Control with room temperature and time remaining display on three-button panel
  • Comes in white, chrome, brass, nickel or gold
  • Flush mounted, must be outside of sauna room
  • Use with Digital Heater Series
  • 3 1/32″W x 3 1/16″H


Misty-MC9 Sauna Heater Control

  • Control with timer, thermostat and light switch
  • Three knobs for traditional sauna, lower temperature sauna with steam generator, or steam only
  • Surface mounted
  • Use with Misty Series Sauna
  • 9 5/8″ x 8″H x 3″D

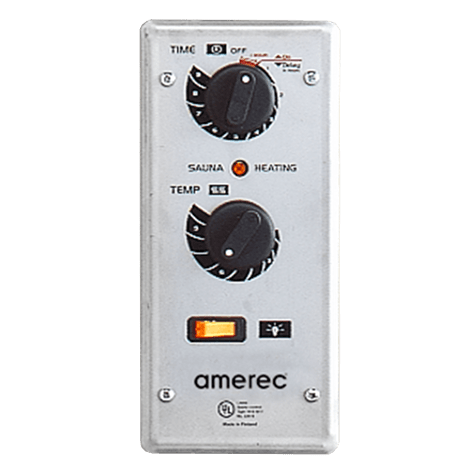

C103-9 Sauna Heater Control

  • Control with 9+1 timer, thermostat, light switch and indicator light
  • Can be flush mounted away from sauna room
  • Use with Designer S and Professional Series saunas
  • 4 ½”W x 10″H

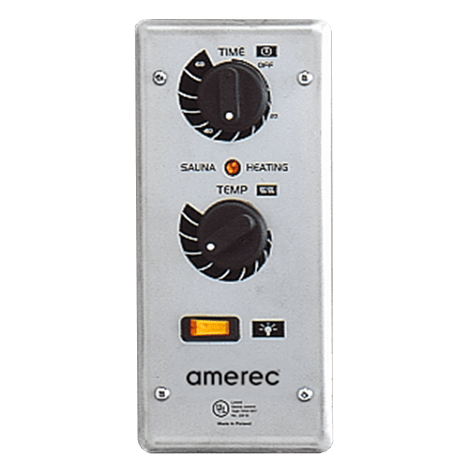

  • C103-60 Control is nearly identical to the C103 except there is no 9 hour delay feature (standard 60 minute timer)
  • C105P Control is also similar to the C103 except in place of the timer is an on/off switch. To be used in commercial saunas only if an attendant is on duty.


Digi-VII Control

  • Seven-day programmable control
  • Start time and operating time for each day of the week
  • Operating temperature, clock, fan and light switch
  • Tamper-proof lock-out feature
  • Integral audible hi-temp alarm
  • 6″H x 5″W x 1/4″D


Slimline Sauna Heater Series

  • 17″H x 15″W x 7″D, wall-mounted
  • Includes 25 lbs of Olivine sauna stones
  • Built-in, side-mounted controls (left or right side) with thermostat and 9+1 timer (60 minutes on, with 9 hour delay)
  • 2.1kW, 3.0kW, 120 volt or 240 volt
  • For sauna rooms 45 cu. ft. to 150 cu. ft.


The Saunatonttu Sauna Heater – Unique European design and outstanding features and benefits:

  • Super insulated to keep rocks “always hot, always ready”
  • Very low surface temperatures
  • Includes child safety lock on lid
  • Reduced safety clearance gives flexibility in sauna design
  • Patented lid-switch, allowing the booster element to come on when the lid is opened and to go off when the lid is closed
  • Diminutive, hand-held control panel for easy in-sauna use
  • Fiber-optic light inside the rock compartment creates an atmosphere similar to glowing embers
  • Contemporary design with curved front, circular top and optional metal or wooden rail – the Saunatonttu will enhance the looks of any sauna
  • Backside is square to allow installation into a sauna corner
  • Can also be installed in front of windows, or even in the center of a sauna. In these installations, optional T&G backside panels are available
  • Dimensions: 19 ¾”W x 19 ¾”D x 43″H
  • Low wattage range (“always on” mode): 100W, 200W, or 300W
  • Booster element power range: 2.4kW, 4.6kW or 6.0kW
  • For saunas from 100 cu. ft. to 425 cu. ft.
